Brass Plate with 2 Dimmers & Duplex Outlet — 3-Gang
Bring 2 rotary dimmers and one duplex outlet together on a 3-gang plate. The layout keeps lighting controls and everyday power at one wall location.
What is included
One 3-gang plate with 2 rotary dimmers and one duplex outlet, the fitted controls shown, and mounting screws.
Layout
Left gang: one rotary dimmer. Center gang: one rotary dimmer. Right gang: one duplex outlet.
Dimmer choice
Choose Single Pole or 3-Way at the same price. This one selection applies to every dimmer on this plate. Single Pole turns on or off through the click while rotating; 3-Way turns on or off by pushing the knob. Rotate either type to adjust brightness. The 3-Way module also supports single-pole wiring, or can be paired with a standard 3-way switch at the other control location.
Dimmer component specifications
Each dimmer uses TRIAC/leading-edge dimming at 110–120V AC, 50/60Hz. Component load ranges are 3–150W dimmable LED/halogen and 40–600W incandescent. The dimmer components are cULus listed for the U.S. and Canada. Use TRIAC-compatible dimmable bulbs or drivers. Follow the supplied instructions for the permitted installed load and any multi-gang derating.
Outlet configuration
This version includes 1 regular 15A duplex outlet, providing 2 plug receptacles. The receptacle rating is 125V AC. Choose a configuration that matches your circuit and follow the supplied device instructions.
Available finishes

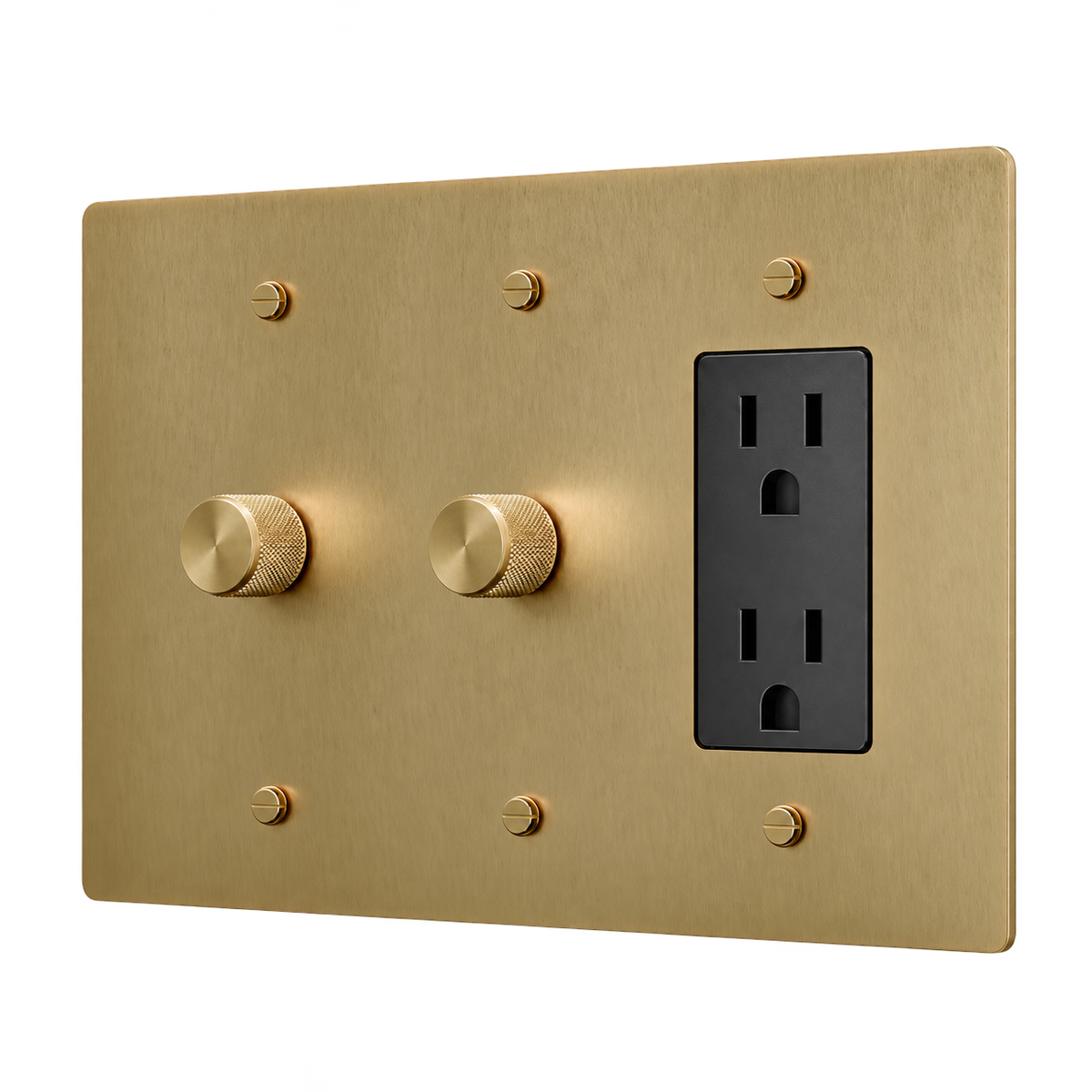

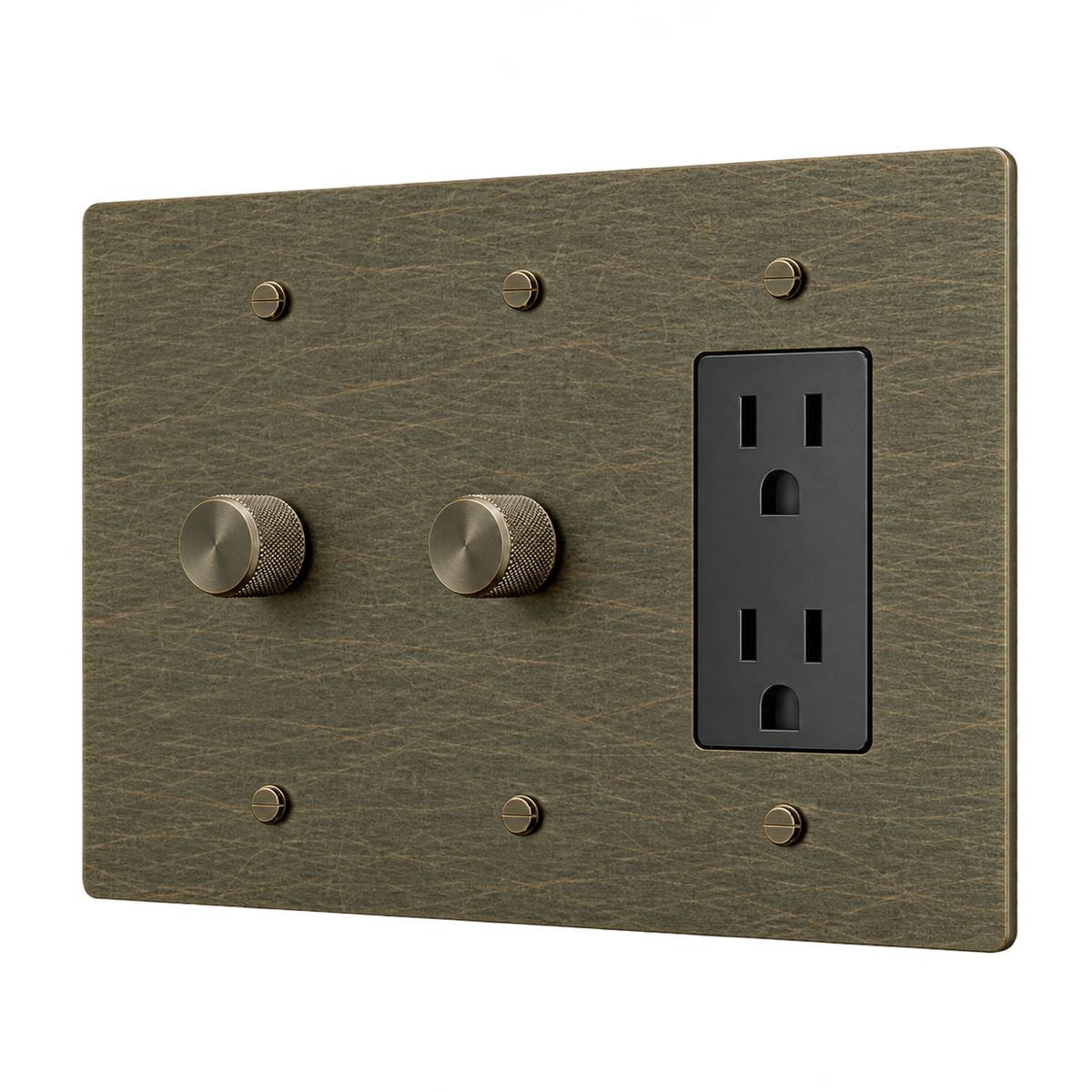

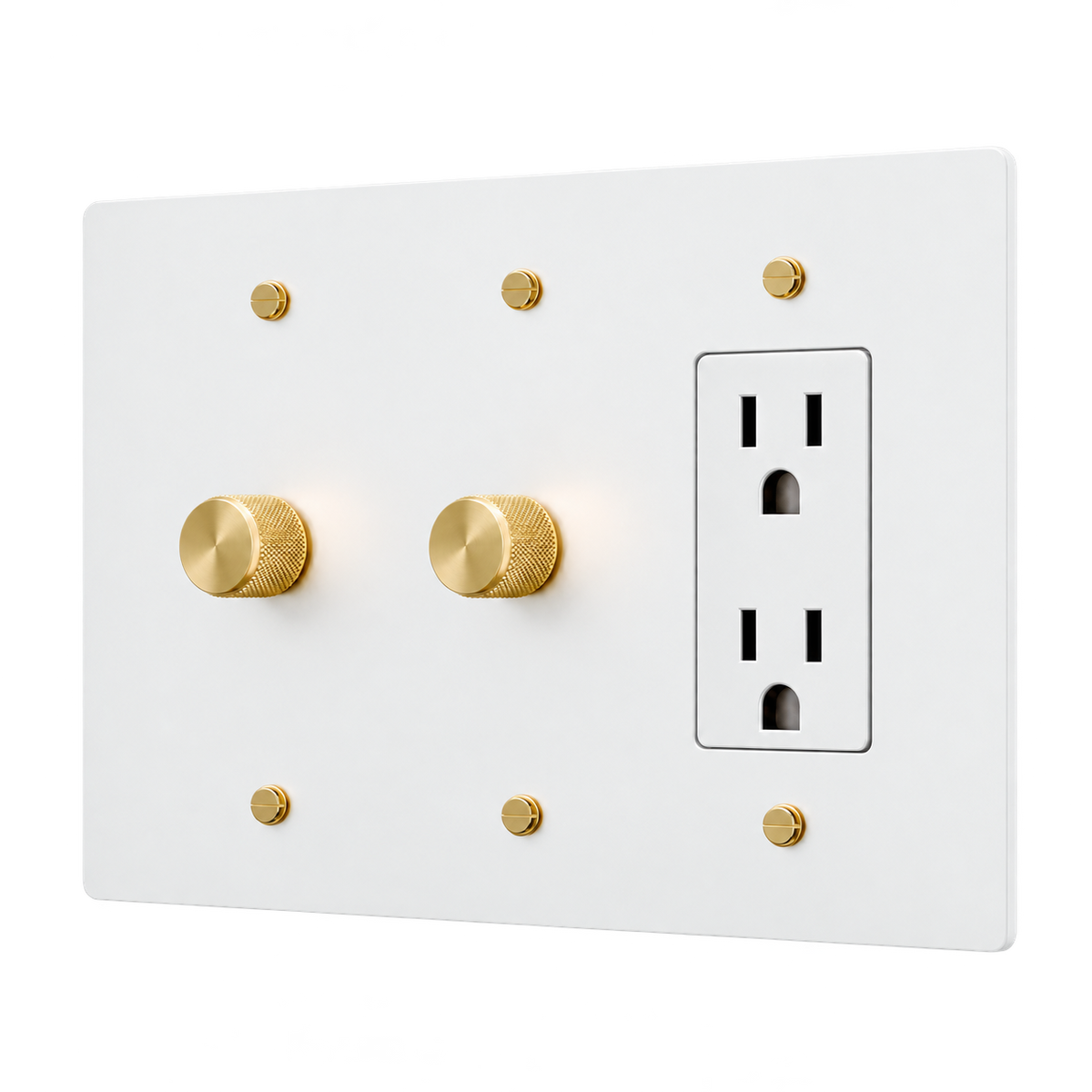

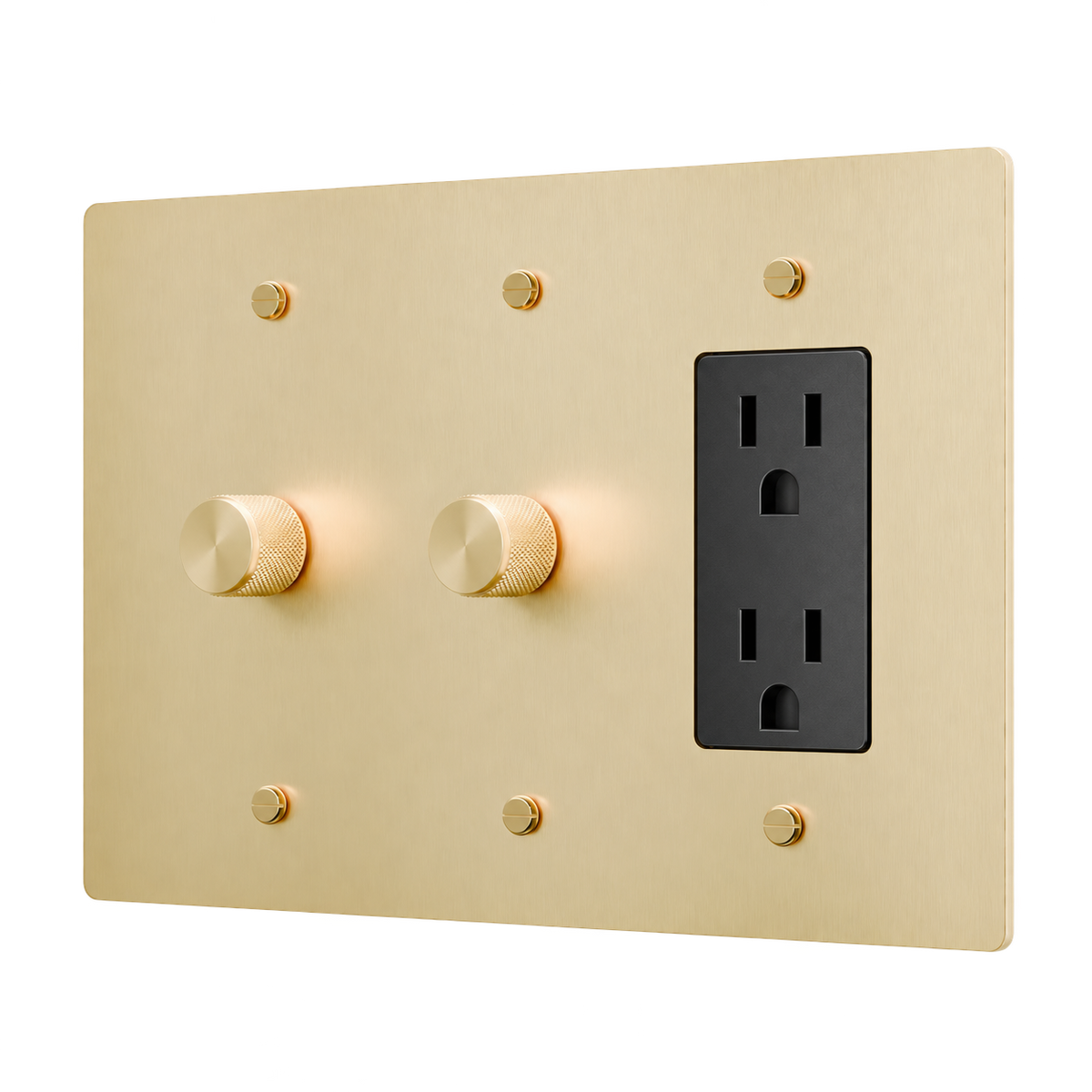

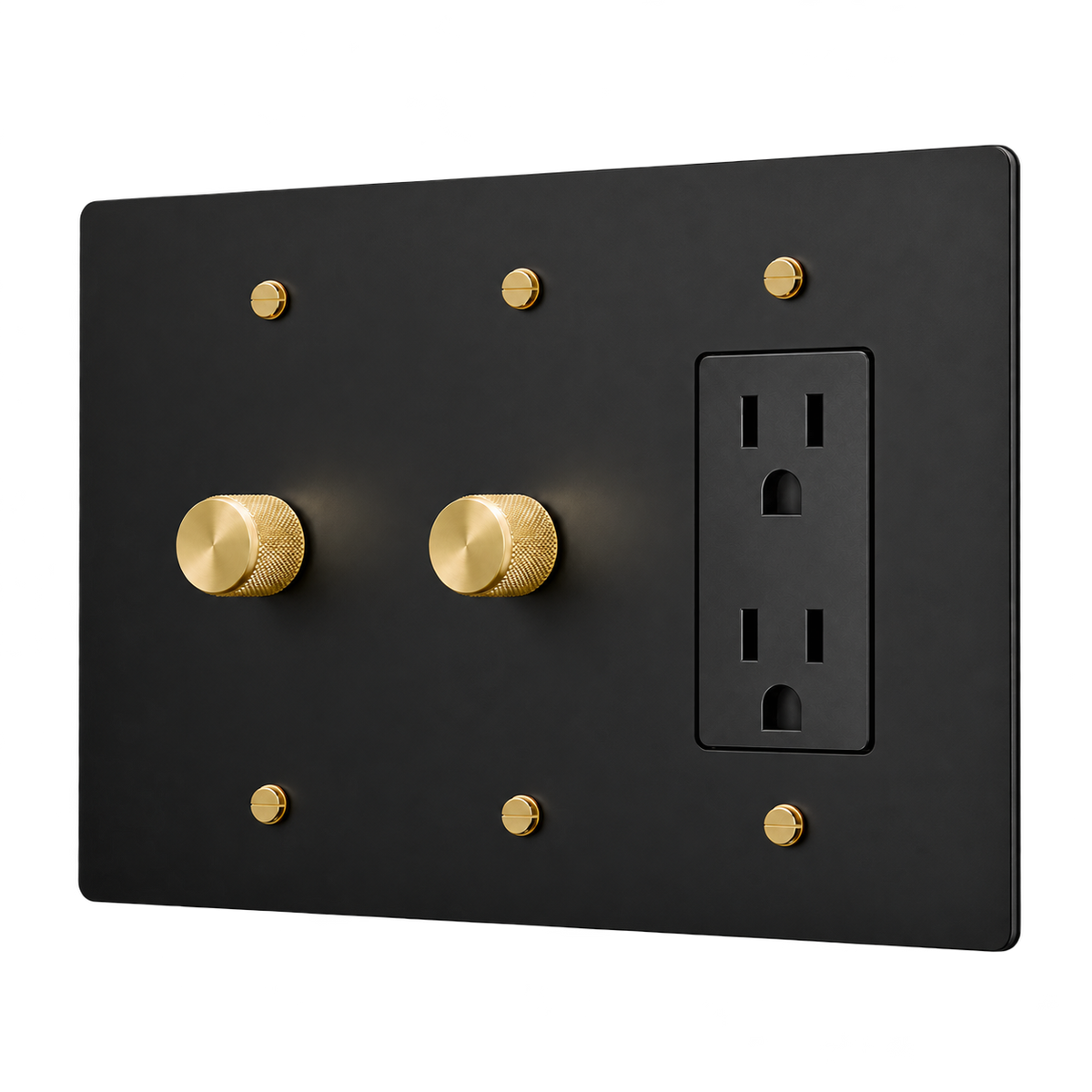

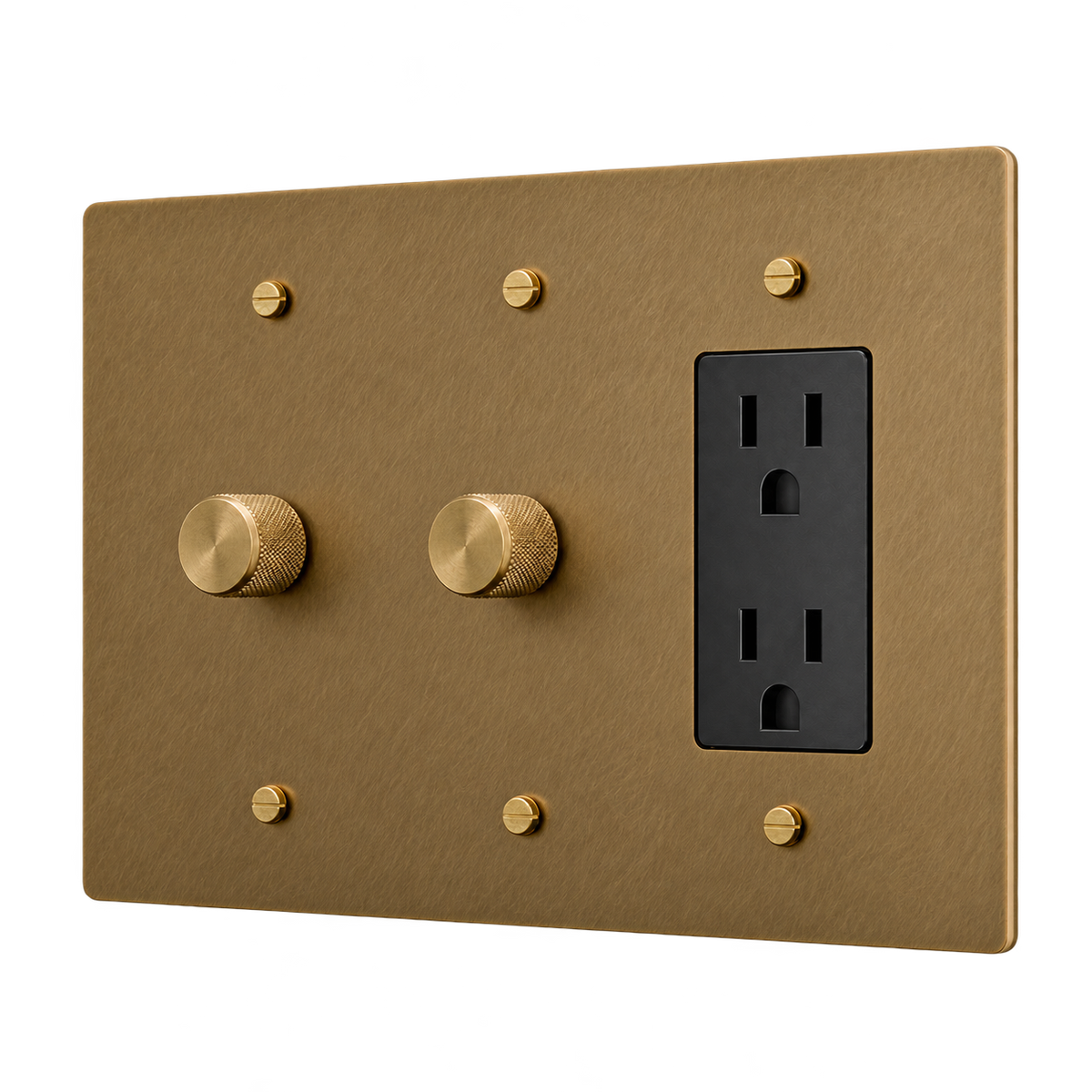

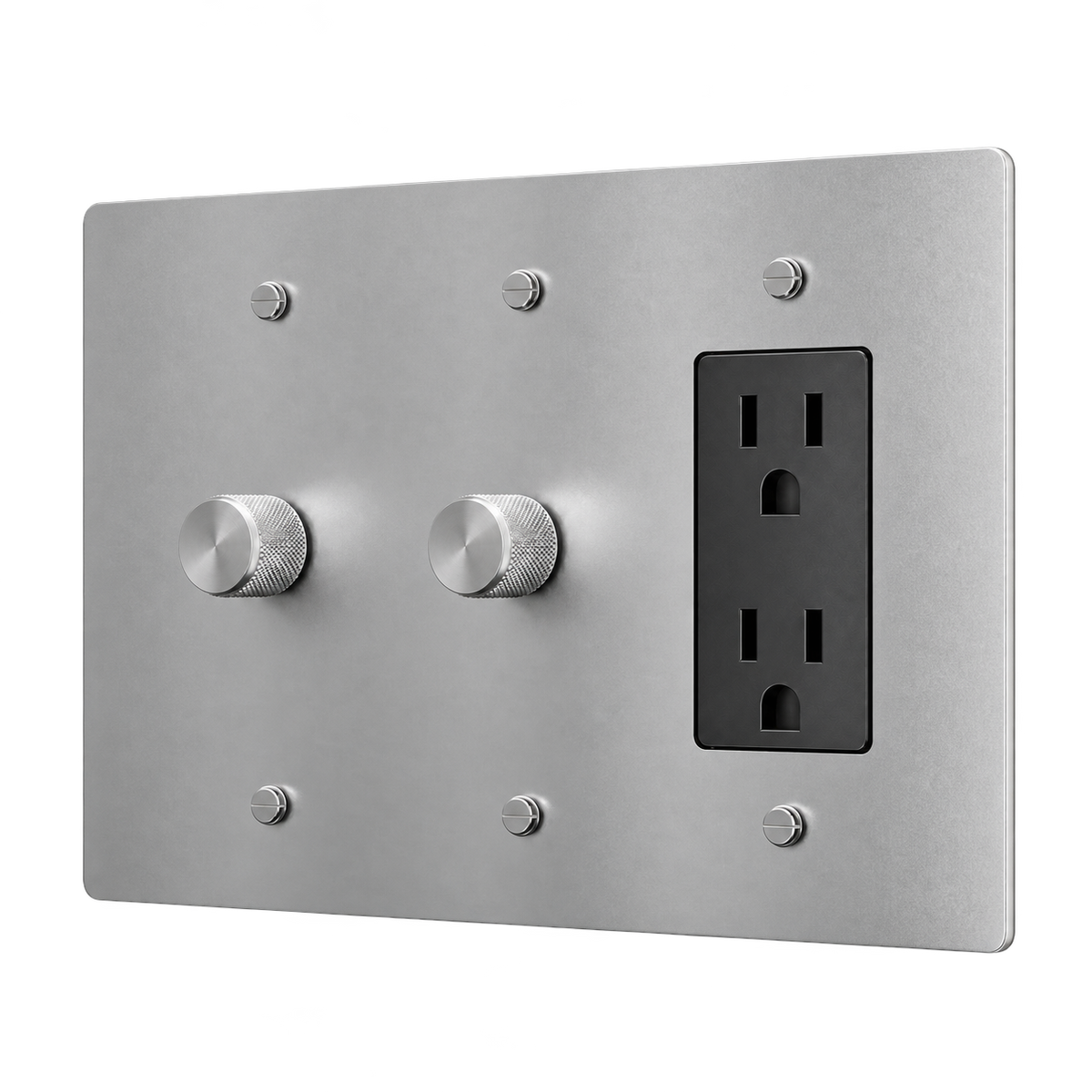

Choose from the supported BHS plate finishes shown in the finish selector: Satin Brass, Antique Brass, Aged Bronze, Stainless Steel, Unlacquered Antique Brass, Matte Black and White. The selected photograph shows the actual plate, control and screw color combination. Unlacquered Antique Brass develops further patina with handling and exposure.
Aged Bronze plates have matching Bronze controls and screws. Stainless Steel plates have matching silver hardware. The remaining plate finishes are supplied with Brass hardware. White plates use White device faces; the other plate finishes use Black device faces.
Installation and care
Confirm the 3-gang arrangement, plate size and clearance for the chosen devices before ordering. Installation should follow the instructions for the supplied components. Clean the plate gently with a soft dry or barely damp cloth; avoid abrasive cleaners.
Our brass hardware is made from solid metal and finished by hand. To clean, wipe gently with a soft, dry cloth or a slightly damp cloth. Avoid abrasive pads, metal polishes, and chemical cleaners, as they can damage the finish.
Unlacquered and antique finishes are designed to age naturally. Over time, they may darken or develop patina, especially with handling. This is normal for real brass and part of its character.
For lacquered finishes, gentle cleaning helps preserve the original appearance. Avoid ammonia-based or acidic cleaners on any finish.
